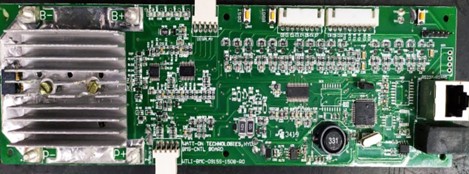

TAPL indigenously developed i-Smart BMS for affordable price can provide extended life for your battery pack and more energy efficient
| 1 | System Voltage | 12 – 1200VDC |
| 2 | Cells per DCU | 6-16 Cells |
| 3 | Cells per system | 6 – 256 Cells in series |
| 4 | capacity | 2000Ah Max |
| 5 | Balancing current | 1000mA @ 4.2VDC Max |
| 6 | Input voltage | 12 VDC (9VDC – 105VDC) |
| 7 | Current consumption | <15mA operating / 820 uA in sleep mode |
| 8 | Temperature Sensors | 8 for Battery pack monitoring
NTC, 10KΩ @ 25 DegC, β Value: 3900 |
| 9 | Measurement Specifications | Cell voltage: Range 0-5V, Accuracy ±2mV typical, <±10mV max., Sampling 1Hz
Temperature accuracy ±1.5°C (dependent on sensor) Pack voltage 0-1200V, accuracy ±1V, Sampling 5Hz Current measurement by Shunt (100 – 1000 μΩ), 400mV max, Sampling 5Hz |
| 10 | Dimensions | DMB 108 x 100 mm
BCU 100 X 120 mm, 20 mm stacking height BCU 90g, DMB 65g |
| 11 | Coating | 3M™ Novec™ electronic coating EGC-1700 |
| 12 | Communication | CAN bus 2.0 A&B for system integration, RS232 PC diagnostics interface |
| 1 | System Voltage | 5 ~ 18VDC |
| 2 | Cells per DCU | 2 ~ 5 Cells |
| 3 | Current capability | 15A Max. |
| 4 | capacity | 100Ah Max |
| 5 | Balancing current | 20mA @ 3.2VDC Max |
| 6 | Input voltage | Self powered |
| 7 | Current consumption | <2mA operating / 80 uA in sleep mode |
| 8 | Temperature Sensors | 1 no on Board
NTC, 10KΩ @ 25 DegC, β Value: 3900 |
| 9 | Measurement Specifications | Cell voltage: Range 0-5V, Accuracy ±2mV typical, <±10mV max., Sampling 1Hz
Temperature accuracy ±1.5°C (dependent on sensor) Pack voltage 0-18V, accuracy ±0.25V, Sampling 5Hz Current measurement by Shunt (100 – 1000 μΩ) |
| 10 | Dimensions & weight | 40 x 60 mm
45g |
| 11 | Coating | 3M™ Novec™ electronic coating EGC-1700 |
| 12 | Communication | SM BUS, RS 485 (Optional) |
| 1 | System Voltage | 18 ~ 45VDC |
| 2 | Cells per DCU | 6 ~ 10 Cells |
| 3 | Current capability | 15A, 50A, 100A Max. |
| 4 | capacity | 100Ah Max |
| 5 | Balancing current | 20mA @ 3.2VDC Max |
| 6 | Input voltage | Self powered |
| 7 | Current consumption | <2mA operating / 80 uA in sleep mode |
| 8 | Temperature Sensors | 2 no on Board
NTC, 10KΩ @ 25 DegC, β Value: 3900 |
| 9 | Measurement Specifications | Cell voltage: Range 0-5V, Accuracy ±2mV typical, <±10mV max., Sampling 1Hz
Temperature accuracy ±1.5°C (dependent on sensor) Pack voltage 0-45V, accuracy ±0.25V, Sampling 5Hz Current measurement by Shunt (100 – 1000 μΩ) |
| 10 | Dimensions & weight | 80 x 60 mm
80g |
| 11 | Coating | 3M™ Novec™ electronic coating EGC-1700 |
| 12 | Communication | SM BUS, RS 485 (Optional) |
| 1 | System Voltage | 3 ~ 18VDC |
| 2 | Cells per DCU | 2 ~ 4 Cells |
| 3 | Current capability | 15A |
| 4 | capacity | 50Ah Max |
| 5 | Balancing current | 20mA @ 3.2VDC Max |
| 6 | Input voltage | Self powered |
| 7 | Current consumption | <2mA operating / 80 uA in sleep mode |
| 8 | Temperature Sensors | 1 no on Board
NTC, 10KΩ @ 25 DegC, β Value: 3900 |
| 9 | Measurement Specifications | Cell voltage: Range 0-5V, Accuracy ±2mV typical, <±10mV max., Sampling 1Hz
Temperature accuracy ±1.5°C (dependent on sensor) Pack voltage 0-18V, accuracy ±0.25V, Sampling 5Hz Current measurement by Shunt (100 – 1000 μΩ) |
| 10 | Dimensions & weight | 50 x 50 mm
90g |
| 11 | Coating | 3M™ Novec™ electronic coating EGC-1700 |
| 12 | Communication | SM BUS, RS 485 (Optional) |
| 1 | System Voltage | 12 ~ 140VDC |
| 2 | Cells per DCU | 12 ~ 32 Cells |
| 3 | Current capability | 15A, 50A, 100A, 200A |
| 4 | capacity | 1000Ah Max |
| 5 | Balancing current | 250mA @ 3.2VDC Max |
| 6 | Input voltage | Self powered |
| 7 | Current consumption | <2mA operating / 80 uA in sleep mode |
| 8 | Temperature Sensors | 16 no on Board
NTC, 10KΩ @ 25 DegC, β Value: 3900 |
| 9 | Measurement Specifications | Cell voltage: Range 0-5V, Accuracy ±2mV typical, <±10mV max., Sampling 1Hz
Temperature accuracy ±1.5°C (dependent on sensor) Pack voltage 0-140V, accuracy ±0.25V, Sampling 5Hz Current measurement by Shunt (100 – 1000 μΩ) |
| 10 | Dimensions & weight | 240 x 220 mm
140g |
| 11 | Coating | 3M™ Novec™ electronic coating EGC-1700 |
| 12 | Communication | CAN, RS 485 (Optional), Blue tooth (Optional) |
